Our line of strapping machines quickly and securely strap, bundle or palletise cartons and boxes. Both the fully automatic strapping machine and semi-automatic strapping machine are especially designed to reduce stress and time strapping your loads and packages. They are suitable for 9-12mm wide strapping and have a total cycle time of 2.5 seconds (semi-auto) and 2.2 seconds (fully automatic).
While its speed increases your productivity, our machine strapping equipment also enables easy handling because it can create box handles. Straightforward to use, box strapping machines are a reliable solution in different work areas, particularly in warehouses and packing departments.
Semi-Automatic and Fully Automatic machines available.
| SKU | CoreSize | Arch | Size | |
| TIMAX-TMS300 | Semi Auto | 200 x 190mm | Request a Quote | Request a Quote |
| OPTIMAX-TRS600 | Fully Auto | 200 x 190mm | 850 x 600mm | Request a Quote |

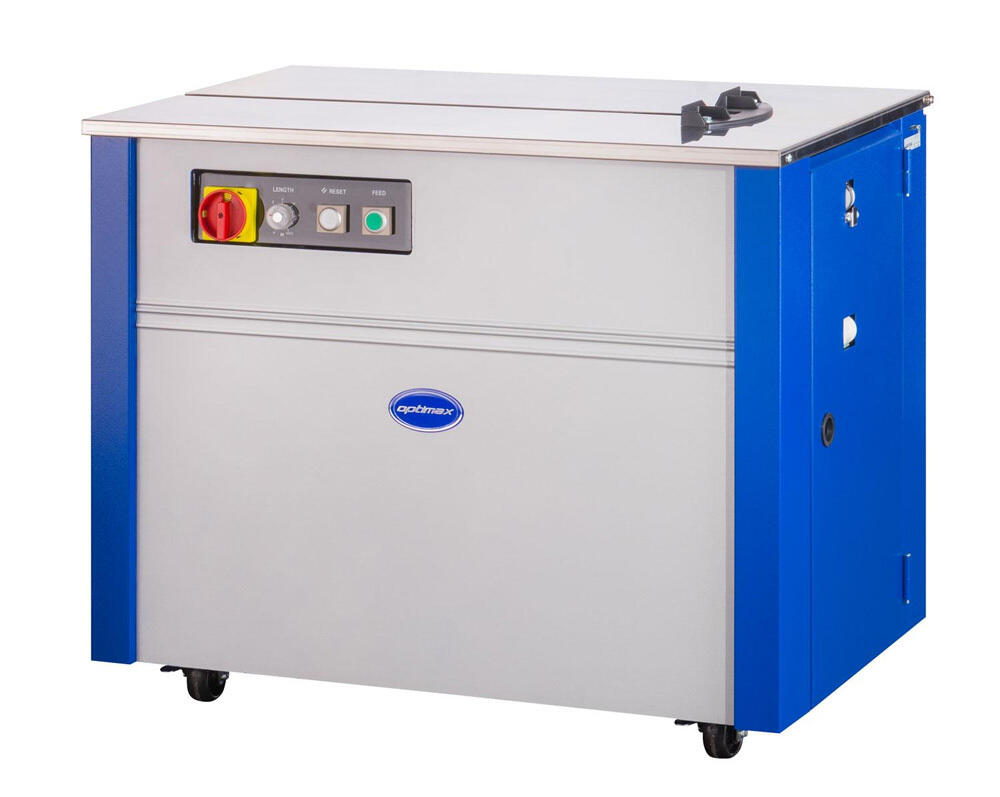

The TMS300 mobile semi-automatic strapping machine is reliable, simple to use and ideal for general strapping and bundling purposes. The unit has a convenient open table design and being mounted on castors can easily be moved as needed, then fixed into place. The total cycle takes 2.5 seconds, so the machine is a real time-saving solution compared to manual strapping. It is also extremely versatile, with adjustable strap length and tension control – ideal for higher volume strapping – and the open table which allows various sized products to be strapped. The maximum strappable package weight is120kg.The TMS300 takes 12mm polypropylene/plastic strapping and can be adjusted for 9mm width. It is compatible with 200mm or 280mm internal diameter cores. Strapping tension can be adjusted externally between a range of 15-45kg (depending on the strap used). All the machinery is enclosed safely in the unit’s cabinet where the strapping reel and sealing head are protected from contamination and damage. This semi-automatic strapping machine weighs104kg and measures 92 x 59.5 x 78.5cm (width x depth x height).

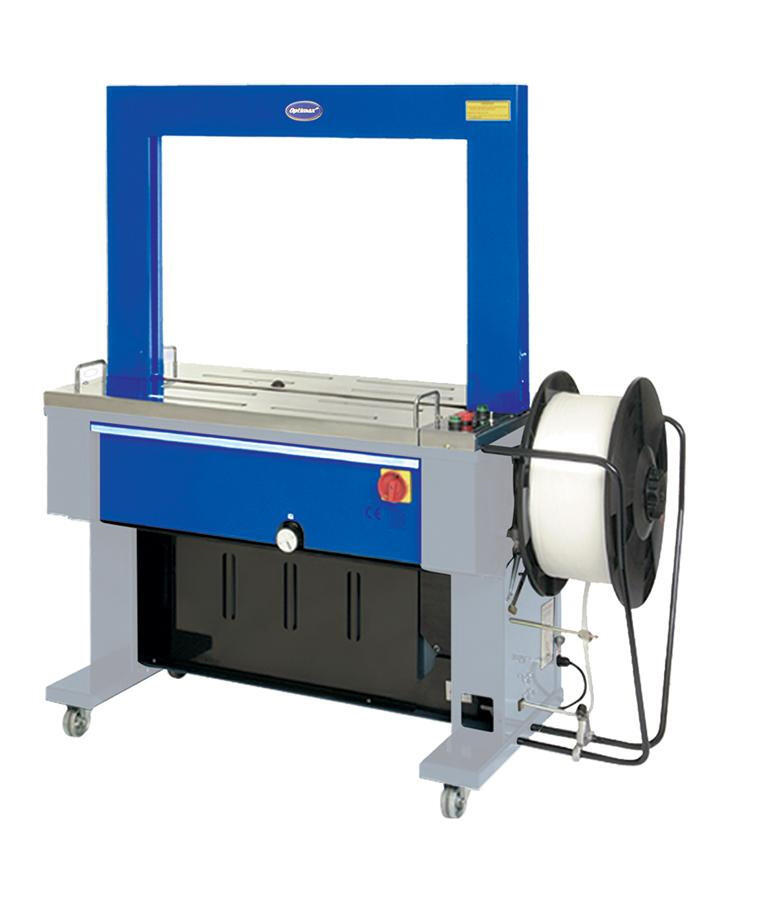

This entry-level arch automatic strapping machine of excellent build quality is ideal for high volume applications with packages of variable shapes and weights as well as for bundling together boxes for shipment. Simple to use, it provides automatic tensioning, sealing and cutting and produces up to 27 straps per minute.The TRS600 takes 9-12mm polypropylene/plastic strapping, with automatic feed, and has a maximum tension force of 70kg which can be manually adjusted externally (minimum 10kg). The machine has four castors and its feet can be adjusted for uneven floors, giving it an all-round stability. The arch size is 85 x 60cm (height x width).The strapping coil is mounted externally at a suitable height for easy access and changeover. The strapping cycle, which is just 2.2 seconds, is activated via the control panel, an electrical footswitch or a table pressure switch, providing a versatile fast and easy operation. A short feed sensor detects when the strap coil has ended, with an auto loop ejector automatically ejecting the remainder so that a new coil can be loaded quickly. The tensioning and sealing head is of robust build for durability and reliability.This automatic strapping machine weighs 220kg and measures 163 x 62 x 174 cm (width x depth x height).
Increase your packing room productivity by using our industrial strapping machines to strap or palletise cartons or boxes for shipment. The semi-automatic strapping machine and fully automatic strapping machine guarantee to deliver both speed and quality. This cost-effective and highly convenient packing equipment will cut not just your strapping time but your shipping costs as well by unitising loads.
Ideal for plastic strapping, polyester strapping and polypropylene strapping, these machines feature high-grade technology and are convenient and simple to use. The semi-auto strapping machine is suitable for general strapping purposes, while the fully automatic strapping machine is ideal for use in heavy volume strapping needs, particularly when strapping strong and sturdy cardboard boxes.
An automatic strapping machine is a cost-effective piece of packaging equipment that puts an end to the time-consuming and tedious manual strapping procedure.
To find out more about our strapping machines call us on 01707 635343, and we will be very happy to help you decide which one is the right one for you.
